Product Detail

High-Power Industrial Type Lathe CJM280

Swing over bed:
280mm
Spindle cone hole：
MT.4#
Two top distance：
610mm
Max lateral travel：
130mm
Maximum rotation
160mm
Longitudinal stroke&
65mm
Spindle through hol&
26mm
Hotline：
0566-2610878
access
Tmall official web
Consultation
Consultation
Collect
  • DETAILS

High-power industrial lathe CJM280

Without changing the gear, the selection of tool speed and pitch can be realized.

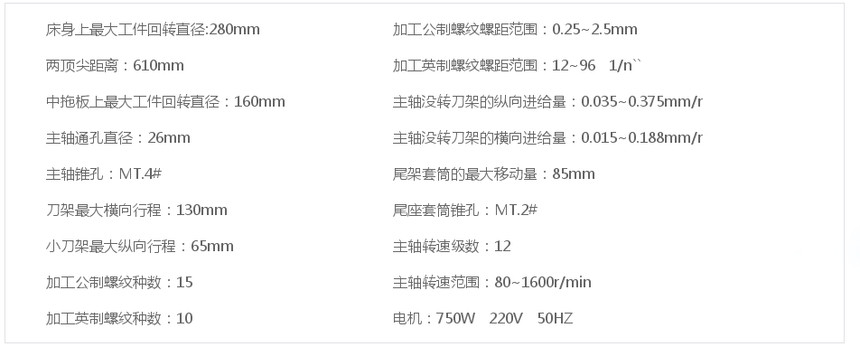

Swing Over Bed

280mm

Range Of Metric Threads

0.25-2.5mm

Distance Between Centers

610mm

Range Of Imperial Threads

12-96

Carriage Slide Centers

160mm

Longitudinal Feed On Spindle Toolpost

0.035-0.375mm/R

Spindle Bore

26mm

Cross Feed On Spindle Toolpost

0.015-0.188mm/R

Spindle Taper

MT4

Tailstock Sleeve Travel

85mm

Maximum Lateral Carriage Slide Travel

130mm

Tailstock Sleeve Taper

MT2

Maximum Tool Longitudinal Travel

65mm

Spindle Speed Step

12

Number Of Machining Metric Threads

15

Spindle Speed Range

80-1600R/MIN

Number Of Machining Imperial Threads

10

Motor

750W 220V 50HZ
